Kverneland Exacta HL

The High Capacity Model

The Exacta HL is the high capacity model of the Exacta range. The heavy duty construction of the HL makes it possible to carry up a maximum of 3.450 or 3.900 litres of fertiliser with 3 extension rims. Easy setting and adjustment can be done with the EasySet on each spreading disc. An innovative drive line to each disc ensures gentle agitation due to the “slow rotating” agitator system, which runs at 15% of the spreading disc speed. Both discs can be shut off independently to spread half the working width, essential for preventing lodging in tapering headlands.

The Advantages:

CentreFlow spreading system
EasySet for quick and easy adjustment
Border spreading is easy!
Standard and optional equipment available to fulfil your requirements
Exacta Remote Control II to operate the spreader from the closed tractor cab

Technical Specifications

Exacta HL (narrow)	HL 1500	HL 2150	HL 2800	HL 3450
Hopper capacity (l)	1500	2150	2800	3450
Filling height (cm)	110	129	148	167
Width (cm)	275	275	275	275
Filling width (cm)	269	269	269	269
Empty weight (kg)	495	525	555	585
Spread width (m)	12 – 45 (54)*	12 – 45 (54)*	12 – 45 (54)*	12 – 45 (54)*
Output (kg/min)	10 – 320	10 – 320	10 – 320	10 – 320

* Depending on fertiliser type and type of vanes.

Exacta HL (wide)	HL 1875	HL 2550	HL 3225	HL 3900
Hopper capacity (l)	1875	2550	3225	3900
Filling height (cm)	120	139	158	177
Width (cm)	290	290	290	290
Filling width (cm)	284	284	284	284
Empty weight (kg)	530	565	595	625
Spread width (cm)	12 – 45 (54)*	12 – 45 (54)*	12 – 45 (54)*	12 – 45 (54)*
Output (kg/min)	10 – 320	10 – 320	10 – 320	10 – 320

* Depending on fertiliser type and type of vanes.

CentreFlow Spreading System

No impact, no fragmentation, no dust: Central release point, smooth acceleration and centrifugal force accelerates fertiliser up to disc speed before it reaches the vane.

Accurate spreading pattern: A double overlap spreading pattern gives unrivalled accuracy. The 8 vanes per discs are ensuring a continous flow of fertiliser to the field. This is important for high capacity spreading and forward speed.

Minimal wind influence, maximum tolerance: Flat discs and a horizontal flow of fertiliser give a symmetrical spreading pattern.

Consistent spreading pattern: Eight vanes per disc, eight sectors per revolution give an equal distribution. Double overlap spreading pattern.

Guaranteed accuracy on slopes: guaranteed accuracy on slopes. The fertiliser always contacts the vanes at the same point, also on slopes and travels the complete length of the vane.

EasySet: Easy Setting and Adjustment

The compact EasySet ‘dashboard’ gives you considerably simplified accurate setting and adjustment of applicaton rates. Two hydraulically operated metering plates, each with three discharge openings ensure an equal fertiliser flow from the hopper to the spreading discs.
The development department of Kvernelands spreader R&D team has its own spreader competence centre in order to allow continuous testing throughout the year. All test are carried out according to the strictest international standards and quality requirements.
The key to accurate spreading is matching fertiliser quality and litre weight with the spreading charts as close as possible. The CentreFlow 6 step checklist helps you to ensure consistent accuracy in all field conditions
Select fertiliser type
2. Determine granule size and distribution
3. Determine litre weight
4. Select spreading table
5. Select field settings
6. Adjust EasySet system

Border Spreading

Kverneland offers the ExactLine system or manual/hydraulic border spreading plate for border spreading. The ExactLine can be accurately set for all types of fertiliser and for all working widths. Operation is easy, no need to leave the tractor seat. For the Exacta CL is also a tramline cylinder optional available.

With one-side boundary spreading the tractor is driven approximately 2 metres from the field border.

With boundary track spreading the tractor is driving in the first tramline and is spreading to the border. The distance to the border is the half of the working width.

The Border Spreading Indicator (BSI), indicates which border spreading device is active.

Standard and Optional Equipment

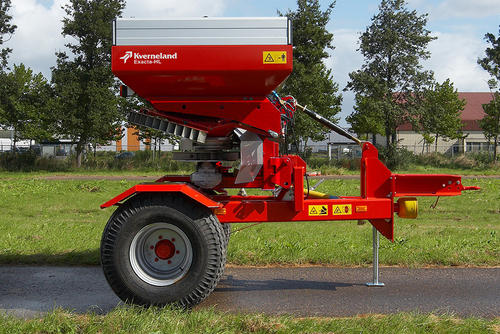

The Exacta HL/TL spreaders are also available mounted on a trailer frame.

Central Hydraulic Drive as option available for the HL/TL.

Easy to assemble aluminium hopper extensions are available to increase hopper capacity.

An easy to fold in and out hopper cover is as option availble. Simple to fit!

Left/right shut off valve for spreading at half working widths is optional available.

To ensure a consistent flow when spreading low quantities, the CentreFlow system is equipped with a fine application kit. Ideal for spreading low quantities, seeds and slug pellets.

Delta shaped heavy duty grids are standard equipment of the Exacta HL/TL spreader.

Centre gear box with 2 input shafts for high and low disc speed settings is standard equipment of the HL/TL spreader.

Hopper emptying kit is optional available to easy get the last fertiliser out of your hopper.

Easy calibration is done with the optional calibration container.

Long life time LED lighting set, are optional for the EL, CL and CL-EW. For the HL, TL and TL GEOspread spreader is this standard equipment.

The mud guards (option) protect the spreading disc against mud, water etc.

Exacta Remote Control II

With Exacta Remote II, you can operate the spreader from the closed tractor cab!

The operating panel provides all the functions to start and stop the spreader, to set the right application rate and to increase and decrease the application rate on the move. The latest settings are retained in the memory function.

Both discs can be shut off independently to spread half working width.

Specially sealed actuators are used to cope with corrosive conditions.
